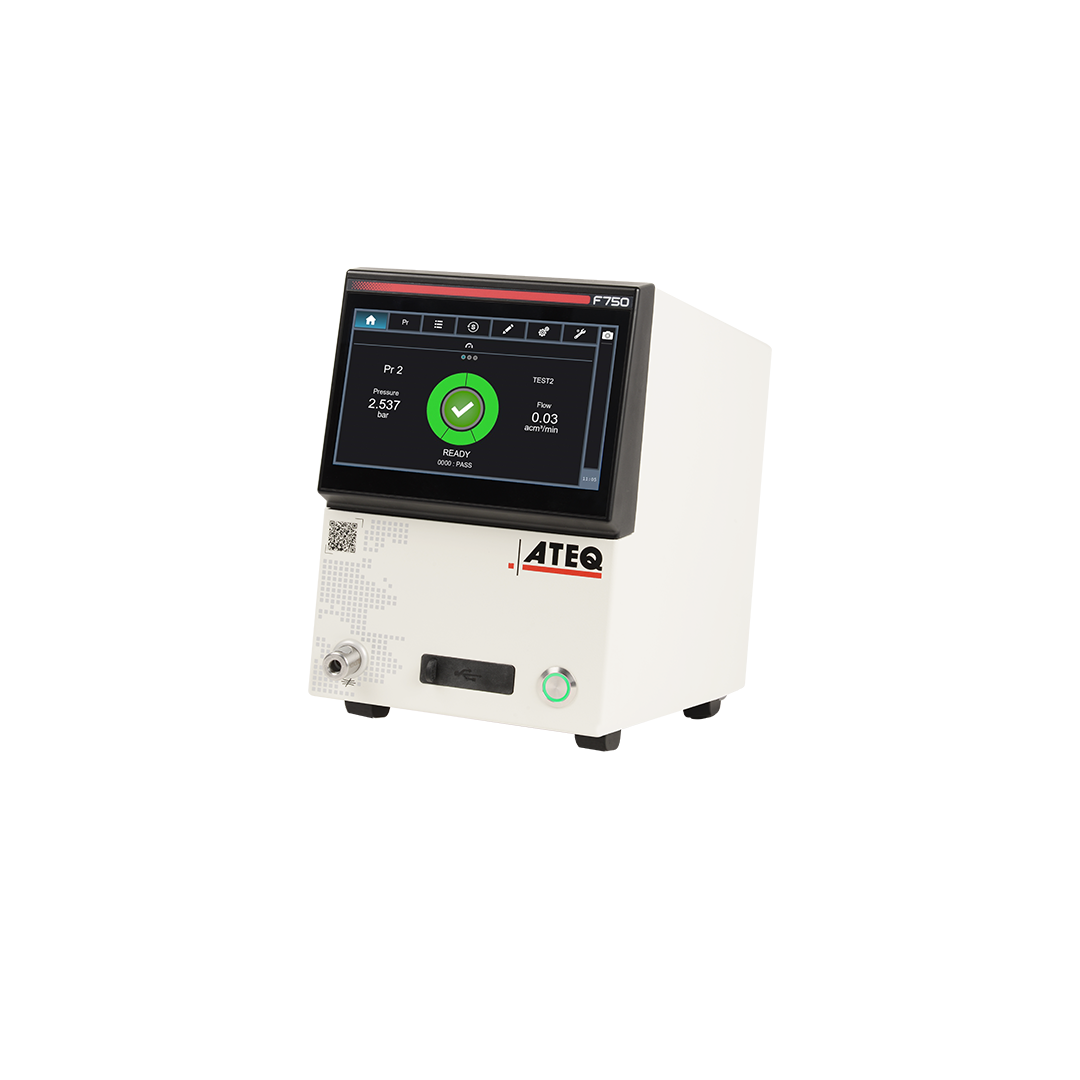

F750
LEAK TEST INSTRUMENT
FOR INDUSTRIAL QUALITY CONTROL
ATEQ introduces the F750, part of the brand-new Series 7 — a next-generation product line designed to transform measurement in factories and laboratories. With its smaller, more compact footprint, the F750 is ideal for installations where space optimization is key, while maintaining high performance and reliability.
Dynamic, user-centric touchscreen interface
Secure cloud connectivity for real-time data and documentation access
High-precision, highrepeatability measurements
Worldwide presence and International Expertise
F750 : MEASUREMENT RANGES
| PRESSURE DROP MEASUREMENT | |||
|---|---|---|---|
| Range (Pa) | Standard accuracy* | Optional accuracy (Laboratory calibration on request) | Max. resolution (Pa) |
| 0 – 20 | +/- (2% Rdg + 0.3 Pa) | 0 to 2 Pa: +/- 0.1 Pa Over 2 Pa: +/- (2% Rdg + 0.1 Pa) | 0.001 |
| 0 – 50 | Calibration only in laboratory | +/- (1% Rdg + 0.5 Pa) | 0.01 |
| 0 – 500 | +/- (1% Rdg + 1 Pa) | +/- (0.5% Rdg + 0.5 Pa) | 0.1 |
| 0 – 5000 | +/- (1% Rdg + 10 Pa) | +/- (0.5% Rdg + 5 Pa) | 1 |
*Accuracy: Deviation + Repeatability + Hysteresis.
Rdg: Reading.
F750 : FEATURES
MAIN FEATURES
- Up to 128 programs with 3 different modes: Program, Group (Program sequencing) and Batch (Statistics analysis)
- Fully integrated electronics and pneumatics
- Integrated screenshot capture and export capabilities
- Numerical and graphical data visualization interface
- Flexible parts testing capability
- Rapid filling with a wide test range, from few milliliters to several hundred liters
- Local result history with default archiving
- Multilingual user interface
TEST MODES
- Differential leak test
- Pressure decay leak test
- Sealed part leak test
- Volume test
- Blocage test

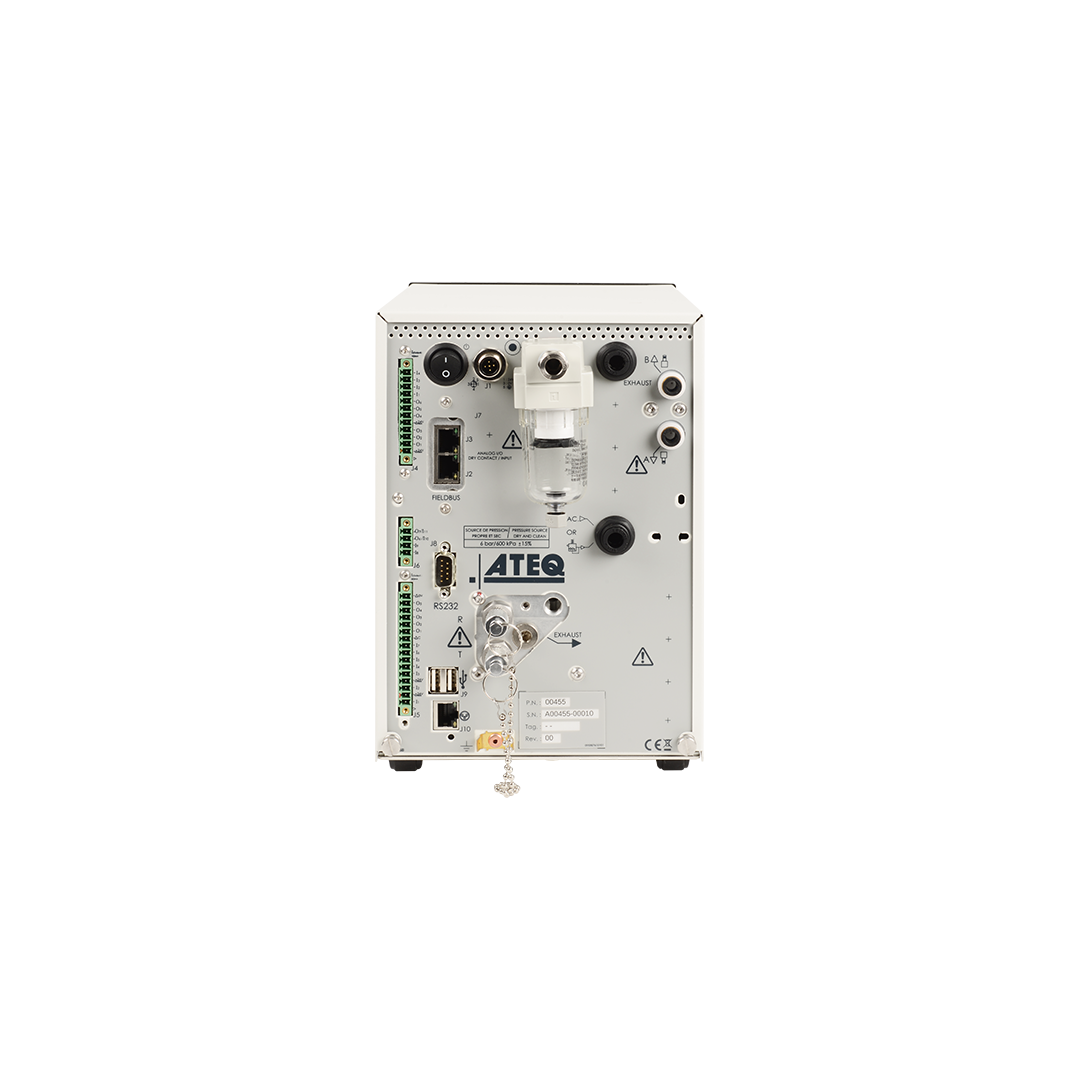

FLEXIBLE COMMUNICATION FORMAT
- Ethernet: Modbus TCP/IP, Results server
- Master USB: Parameters and results transfer
- Slave USB: PC supervision
- RS232: printer, modbus RTU
- Option Fieldbus: Profinet, Ethernet/IP
OPTIONS & ACCESSORIES
- 9 inputs / 5 local outputs
- 6 inputs/ 6 outputs 24 V programmable for external automation
- Electronic regulator
- Dual pressure
- 2 pneumatic outputs for control of sealing connectors
- Y valve
- Leak calibrator (CDF7000)
- Master leak
- Pneumatic connectors
- PLC Tool Box
- Barcode reader
TECHNICAL SPECIFICATIONS :
| SPECIFICATIONS | |
|---|---|
| Physical | Weight: 7 kg (15.43 lbs) (Height x Depth x Width) Case dimensions: 245 x 286 x 174 mm Overall dimensions: 256 x 357 x 174 mm |
| Interface | User friendly interface: 7” touchscreen and intuitive menu-driven operator controls |
| External electrical supply | 24VDC/2.5A (power adapter provided) |
| Air Supply | 6 bar (87 PSI) ± 15% 1 to 2 bar above test pressure Clean and dry air Air quality standard to be applied (ISO 8573-1) |
| Temperature | Operating: +5°C to +45°C Storage: 0°C to +60°C |
| Environment | ROHS standard |
F720 – F750 – F770 COMPARISON
 F720 |
 F750 |
 F770 |
|||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Product profile | Versatile, next-generation Series 7 | Compact, ideal for limited space | Large format for rack/machine integration | ||||||||||||||||||||||||||||||||||||||||
| Weight | 7 kg | 7 kg | 8 kg | ||||||||||||||||||||||||||||||||||||||||
| Dimensions (H × D × W) | 144 × 272 × 257 mm | 245 × 286 × 174 mm | 134 × 273 × 442 mm | ||||||||||||||||||||||||||||||||||||||||
Other specifications ▼
|
|||||||||||||||||||||||||||||||||||||||||||
